Home Products CRA160LSi-A Three Phase Automatic 6U6I Relay Test Set (AC-Mains Operated)
The CRA160LSi-A is t
The CRA160LSi-A is t
COD not available
Protection Relay Test System by CROXS

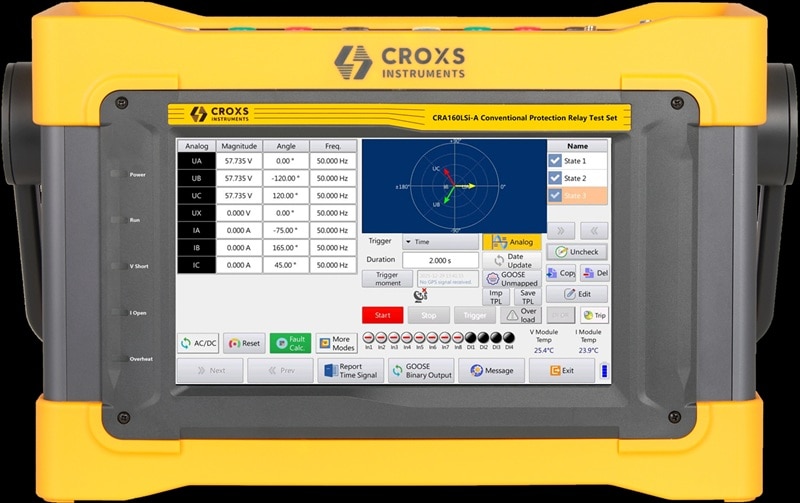

CRA160LSi-A Three Phase Automatic 6U6I Relay Test Set (AC-Mains Operated)

Share with
Share this on :

Description

Product details

The CRA160LSi-A is an automated, AC-mains-operated secondary injection test system (6U6I) designed for high-precision, analog testing of relays, offering a lightweight (8 kg) alternative to heavy imported kits. Operating on 100–240V AC mains, it eliminates battery maintenance and focuses on cost-effective, non-IEC 61850 testing. Key Technical Specifications: Outputs: 6-phase current (up to 40A) and 6-phase voltage (up to 130V). Operation: 100–240V AC mains (no battery dependencies). Interface: Integrated 9-inch touchscreen with 8 inputs/4 outputs. Design: Portable 8 kg chassis; CE/EAC certified. Primary Applications: Protection Testing: Distance, differential, and overcurrent relay calibration. Field Maintenance: Ideal for utilities, GENCOs, DISCOMs, and renewable energy sites (solar/hydro). EPC Projects: Reliable for commissioning laboratories. Frequently Asked Questions (FAQ) for Engineering Teams: Q: Does the CRA160LSi-A support IEC 61850? A: No, the LSI-A focuses on pure analog injection to minimise costs. Q: Why use the 6U6I layout? A: It enables comprehensive three-phase testing without constant rewiring. Q: Is a battery needed? A: No, it operates strictly on AC mains power. About Myriad Industrial Solutions LLP Based in Mumbai, we supply specialised high-voltage diagnostic tools, including CT/PT analysers, oil testers, and micro-ohm meters.

Other Specifications

Is this test set suitable for testing differential relays? :Yes
What about testing distance relays? :Yes these relays can be easily tested.
Is this test set suitable for testing differential relays? :Yes
Frequenty Asked Questions about :CRA160 LSi-A
Voltage channel output power :48W at 130V
What about testing distance relays? :Yes these relays can be easily tested.
Is this test set suitable for testing differential relays? :Yes
Whether this kit as AC and DC current output capability? :Yes
Whether this relay test set provide AC and DC voltage output? :Yes both
Is this protection relay tester operate through Windows based laptop or PC? :Yes
What about testing distance relays? :Yes these relays can be easily tested.
What about testing distance relays? :Yes these relays can be easily tested.
Is this test set suitable for testing differential relays? :Yes
What about testing distance relays? :Yes these relays can be easily tested.
Frequenty Asked Questions about :CRA160 LSi-A
Is this test set suitable for testing differential relays? :Yes
Is this test set suitable for testing differential relays? :Yes
What about testing distance relays? :Yes these relays can be easily tested.
Is this test set suitable for testing differential relays? :Yes
