Recently we conducted a demonstration of the protection relay test system MP3000A and MPWIN relay test software on frequency protection object.

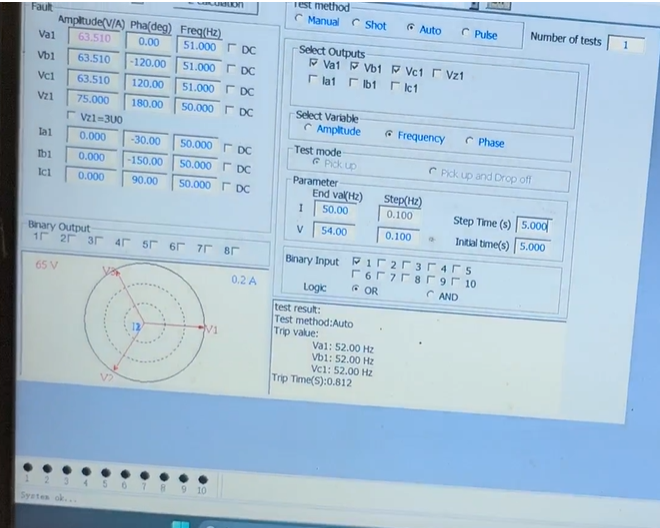

The screenshot shows the frequency at which trip occurred and the trip time. These values are to be compared with the setting values in the relay under test.
The test was passed.
