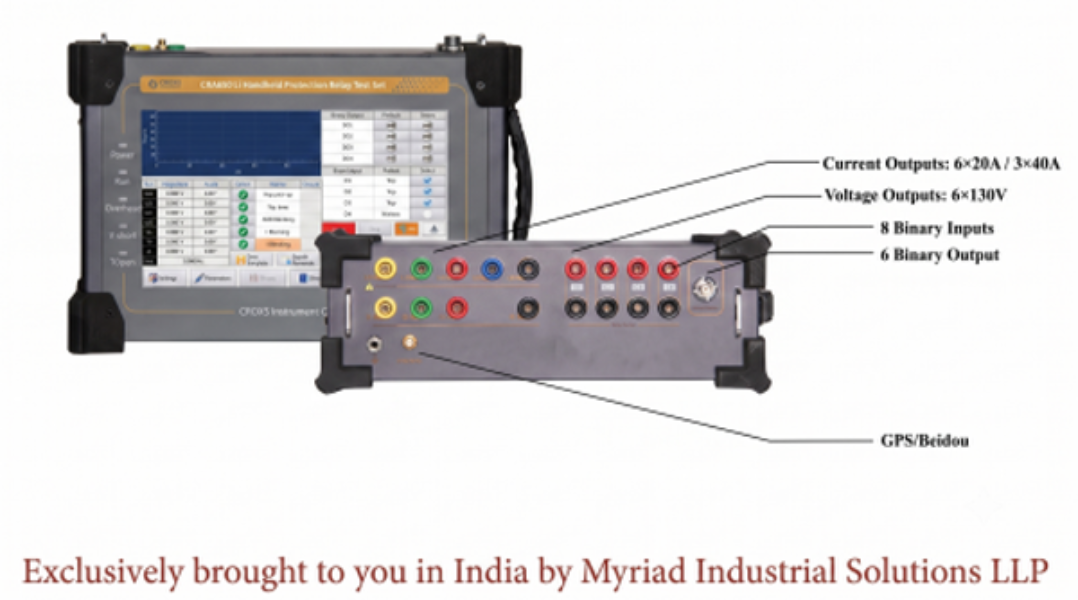

When the test scope requires simultaneous 6-voltage and 6-current channel output — bus differential, two-circuit testing, or full 3-phase current plus residual — the usual compromise is weight. The CRA650LSi removes that compromise: 12 analog output channels (6×130V voltage, 6×20A/3×40A switchable current) in a 5kg, 278×191×88mm chassis with a 9-inch display, running on standard AC mains (100–240V, 50–60Hz). Output power holds at 85W at 20A and 110W at 40A on current, 48W at 130V on voltage — with THD+N ≤0.1% typical on current and phase accuracy at 0.05° typical. That's a full-specification 12-channel output in a unit 3kg lighter than comparable 8kg-class test sets in this configuration. For T& C engineers who need complete 6+6 channel capability without committing to a heavier bench unit, this is the configuration to compare directly against. Exclusively available in India through Myriad Industrial Solutions LLP.
