It can provide high-precision current and voltage measurements for single-phase AC and DC voltage, frequency, phase, and active power.
➢ A ripple test can be conducted to identify AC ripple that is less than 1 kHz.
➢ The device is equipped with an RS232 and RS485 communication interface, allowing for direct communication with a PC.
➢ It is capable of measuring the limit of 120% and can automatically transition between voltage, current, and multi-range.
➢ Featuring an LCD screen with a resolution of 4.3 inches or 5.6 inches. ➢ Supporting online firmware updates on the product.
Hangzhi Precision AC/DC current meter is available in following three models:
Product Model | Current Measuring Range and accuracy | Voltage Measuring Range | Technology |

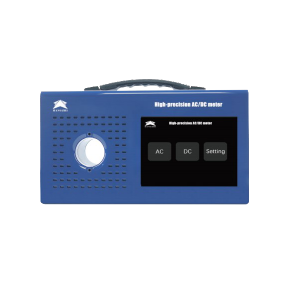

HIU1500B-High Precision Current Meter
| DC1500A @ 0.02% Accuracy AC1000A @ 0.05% Accuracy | DC1000V / AC707V
| Multi-Point Zero Flux G
|
HIU1000B-High Precision Current Tester | DC1000A @ 0.02% Accuracy AC707A @ 0.05% Accuracy | DC1000V / AC707V | Multi-Point Zero Flux G |
HIU600B-High Precision Current Meter | DC600A @ 0.02% Accuracy AC424A @ 0.05% Accuracy | DC1000V / AC707V | Multi-Point Zero Flux G |
Typical application
Verifying the battery discharging capacity is crucial during the manufacturing of electric vehicle (EV) battery packs. Battery discharge testing apparatus is employed to accomplish this. Nevertheless, the apparatus must be calibrated on a regular basis prior to the commencement of the test.
The equipment is calibrated using a current switch, which is the conventional method. However, the operation is challenging, temperature drift is a concern, and it is not intelligent.
Nevertheless, in the present day, battery OEMs are increasingly utilising the Hangzhi HIU AC/DC high precision current tester to replace current shunts, as it offers the following benefits:
1. Greater precision than existing shunts
The HIU1000B High-Precision AC/DC high current meter, which was recently introduced by Hangzhi, has a precision of 0.02% and is capable of meeting the measurement calibration requirements of all charge-discharge testing instruments.
2. Easier to operate
Pass the test cable through the instrument's round opening.
3. Absence of human error
The test cable's position in the round cavity is not mandatory, and it does not influence the test's accuracy.
4. Has the potential to be utilised for an extended period of time
The measurement accuracy is not affected by temperature drift in ippm.
5. Reduced expense
For instance, the HIU1500 is significantly less expensive than the current 1500A shunt, which has an accuracy of 0.02%.
HIU1500B/ HIU1000B/HIU600B
DOWNLOAD DETAILS AND THE USER GUIDE

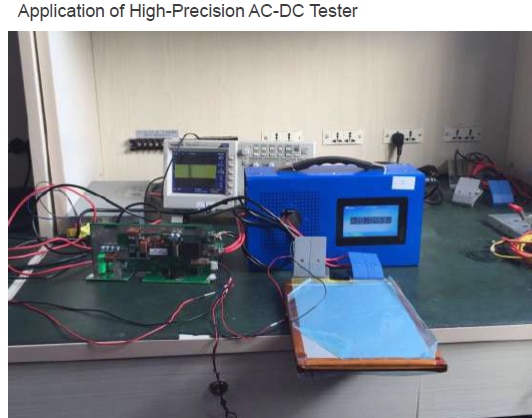

Application of HIU 1500B
Advantages:
1. Accuracy Meets Calibration Requirements for All Charging and Discharging Test Equipment:
The HIU 1000 B high-precision AC-DC tester, with an accuracy level of 0.02, meets the calibration standards for all
charging and discharging test equipment.
2. Simple to Use:
Simply pass the test cable through the instrument’s circular hole for measurement, making it easy to operate.
3. No human operation errors:
The position of the test cable inside the circular hole is not critical, ensuring that the placement of the cable does not affect the test accuracy.
4.Long-Term Usability:
With a temperature drift of 1 ppm, there is no impact on measurement accuracy, allowing for extended use.
5.Improved Efficiency:
Testing one device now takes just 10 minutes, which is 9 times faster than previous methods, significantly reducing manufacturing costs
