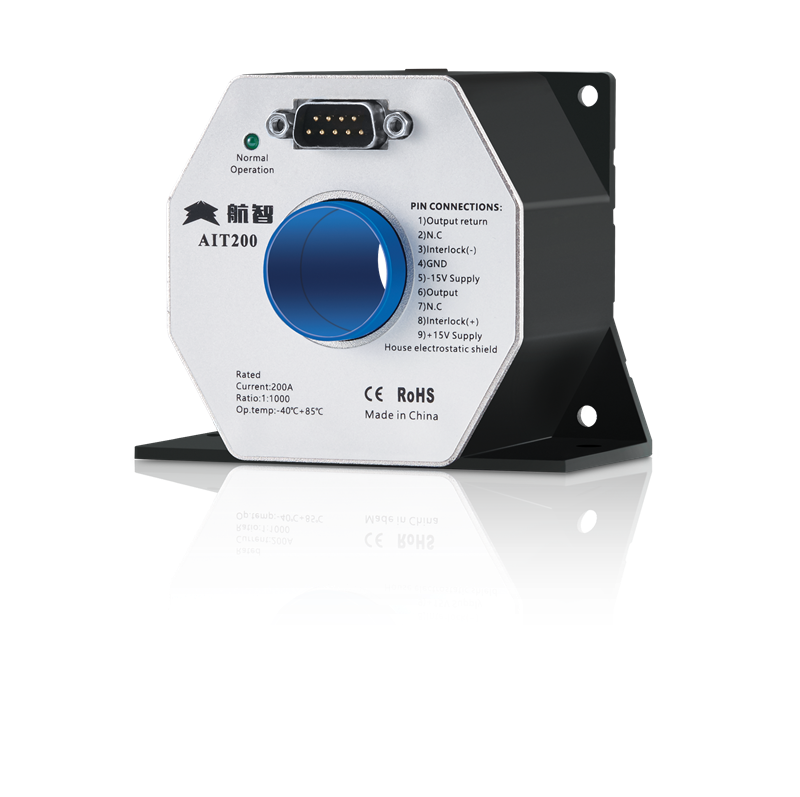

Product Overview: Achieve absolute calibration accuracy with the Hangzhi AIT Series Ultra-Precision Current Transducer. This series is for private NABL-accredited laboratories, medical MRI hardware developers, and high-frequency power analyser design teams, and it offers a baseline accuracy grade of 10 ppm (0.001%). By using advanced Multi-Point Zero-Flux Closed-Loop Technology, the AIT Series avoids core saturation, magnetic hysteresis, and severe thermal zero-point drift, which are the main reasons standard Hall-effect or shunt sensors fail. With an ultra-low temperature drift coefficient of less than 0.1 ppm/°C, your measurement data stays stable and reliable over long calibration cycles, so you do not need to keep mapping it with software. Featuring a massive 500 kHz frequency bandwidth, the AIT transducer tracks high-speed ripple currents and sharp harmonic waves in modern EV motor drive feedback loops and solar inverter test benches with near-instantaneous response times of less than 1 microsecond. Key Technical Specifications: Technology: Multi-Point Zero Magnetic Flux Closed-Loop Fluxgate Global Accuracy Class: Plus or minus 10 ppm (0.001% of full scale) Linearity Error Window: Ultra-tight, less than 5 ppm (0.0005%) variance Temperature Drift: Less than 0.1 ppm/°C (industry peak thermal stability) Frequency Bandwidth: DC to 500 kHz (Handles high-frequency ripples) Response Speed: Less than 1 microsecond latency for fast fault protection Primary Current Capacity: Plus or minus 60A, 200A, 600A, up to 2000A AC/DC Peak Output Signal: Standard lab analogue current ratio (1:1000) or voltage Supply Voltage: High-stability dual rails (plus or minus 15V DC, 10mA background) Isolation Safety: Certified primary-to-secondary dielectric strength greater than 10 kV Installation and Applications: Type: Isolated Pass-Through / Through-Hole Window Layout (Contactless) Uses: Metrology reference standards for private NABL labs, power inverter testing, and MRI gradient current monitoring. Distributed by Myriad Industrial Solutions LLP. Contact our technical desk at electricaltestkit.com to request step files, terminal pin charts, and tiered quotations.
