Protection Relay Test System by CROXS

Digital substation relay test set

Share with
Share this on :

Description

Product details

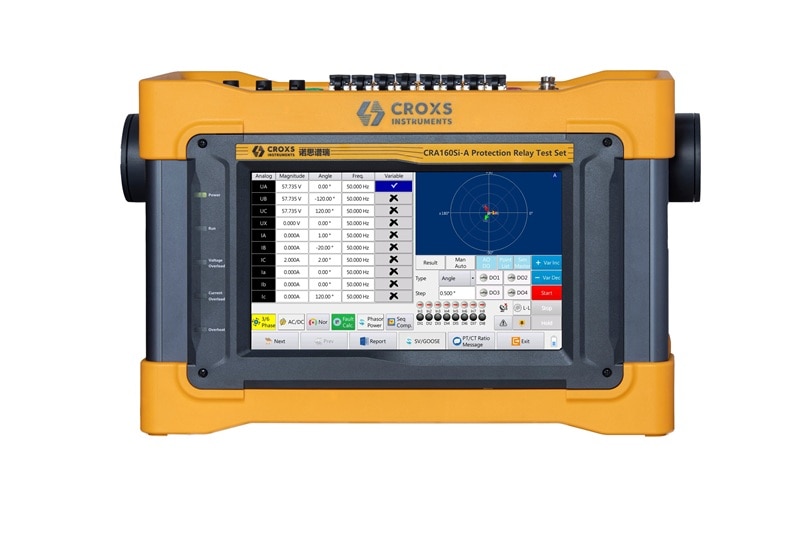

CRA160Si-A Protection Relay Test Set (AC-Mains) Hybrid Protection Relay Test System AC-mains-powered variant with a 300V voltage range for numerical/digital relay testing at fixed installations. Key Specifications: Current outputs: 6 x 20A / 3 X 40A Voltage outputs: 6 x 130V Output Power: 85W at 20A (Typical) / 160W at 40A (Typical), 48W at 130V (Typical) Typical Accuracy: Current: 0.03% Rd + 0.02% Rg Voltage: 0.03% Rd + 0.01% Rg Optical Ethernet ports: 8 pairs Optical serial interface: 4 (2 Tx, 2 Rx) Binary inputs: 8 Binary Outputs: 4 Power supply: AC mains 100-240 V Weight: < 8 kg

  • Filter tags

Other Products

Related Products

AC-mains-powered variant with a 300V voltage range for numerical/digital relay testing at fixed installations. Key Specifications: Current outputs: 6 x 20A / 3 X 40A Voltage outputs: 4 x 300V Output Power: 85W at 20A (Typical) / 160W at 40A (Typical), 90W at 300V (Typical) Typical Accuracy: Current: 0.03% Rd + 0.02% Rg Voltage: 0.03% Rd + 0.01% Rg Optical Ethernet ports: 8 pairs Optical serial interface: 4 (2 Tx, 2 Rx) Binary inputs: 8 Binary Outputs: 4 Power supply: AC mains 100-240 V Weight: < 8 kg
View Details
Digital relay test kit
AC-mains powered variant with 300V voltage range for numerical/digital relay testing at fixed installations. Key Specifications: • Current Outputs: 6×20A / 3×40A • Voltage Outputs: 4×300V • Output Power: 140W at 20A / 220W at 40A (current), 90W at 300V (voltage) • Power Supply: AC-mains, 100–240V • Binary I/O: 8 isolated binary inputs, 4 relay binary outputs • Display: 9-inch | Weight: 8kg • Certification: CE / EAC / ISO Application: Numerical/digital relay testing at DISCOM substations and fixed T&C labs where AC mains is available and a 300V voltage range is needed, without battery maintenance.
View Details
Relay Test Set for differential relay testing
The CRA160LSi-A is the AC-mains-operated variant of the CRA160 series, built for fixed installations where continuous mains power removes the need for battery management. Key Specifications: • Current Outputs: 6×20A / 3×40A • Voltage Outputs: 6×130V • Output Power: 140W at 20A / 220W at 40A (current), 48W at 130V (voltage) • Power Supply: AC mains, 100–240V, 50–60Hz • Binary I/O: 8 isolated binary inputs, 4 relay binary outputs • Display: 9-inch | Weight: 8kg • Certification: CE / EAC / ISO
View Details
CRA160LSi-A Protection Relay Test Set (AC-Mains)
